I. Core Principles of Tool Holder Selection for Machining Centers
Tool holder selection does not require blindly pursuing high-end models. It mainly follows four principles: machine tool adaptation, working condition matching, qualified precision, and optimal cost performance, so as to avoid problems such as tool vibration, runout, tool breakage and precision out-of-tolerance caused by improper selection.
1. Machine Tool Spindle Adaptation Principle
The tool holder must first match the spindle specification of the machining center. The mainstream spindle standards include BT, HSK, CAT and BBT, and the specifications (30#, 40#, 50#) must be consistent with the machine tool spindle. For example, vertical machining centers mostly adopt BT40 and BBT40 tool holders; high-speed precision machining centers prefer HSK63A tool holders; large gantry machining centers commonly use 50# large-specification tool holders. Mismatched specifications will lead to installation failure, fitting gaps and unstable transmission.
2. Working Condition Matching Principle
Rough machining, semi-finishing and finishing have great differences in working conditions with distinct selection priorities. Rough machining features large cutting allowance, high cutting torque and strong impact vibration, so tool holders with high rigidity, large clamping force and strong impact resistance are required. Finishing pursues high precision and low runout, requiring high-precision tool holders with good concentricity and excellent dynamic balance for high-speed operation. Special processes such as drilling, tapping and boring need supporting special tool holders to ensure machining stability.
3. Precision and Rotational Speed Adaptation Principle
Conventional precision tool holders are applicable for low-speed machining (within 8000 r/min). High-speed finishing (above 10000 r/min) must adopt high-precision tool holders with qualified dynamic balance grade, to avoid workpiece dimension deviation, surface tool marks and spindle wear caused by centrifugal force during high-speed operation. The runout precision of tool holders for conventional machining shall be within 0.005mm, and that for precision machining shall be controlled within 0.002mm.
4. Tool Adaptation Principle
Tool holders shall be selected according to the tool type and clamping range. End mills, drills, taps and boring tools need matching clamping modes to prevent tool slipping caused by loose clamping, tool chipping caused by over-tight clamping, and machining vibration and insufficient rigidity caused by insufficient clamping length.
II. Common Types and Application Scenarios of Tool Holders

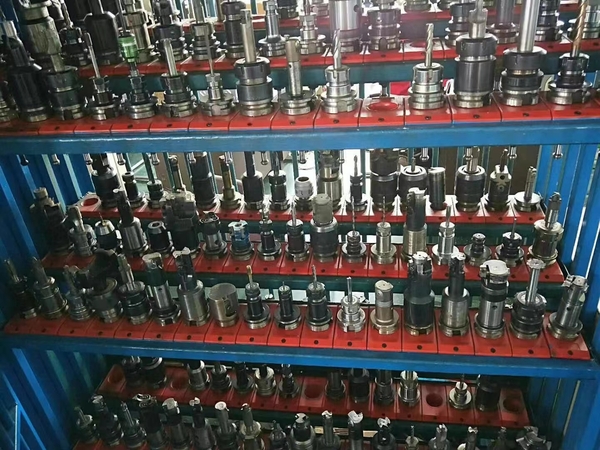

Common tool holders for machining centers include ER elastic tool holders
, high-power tool holders, side-lock tool holders, hydraulic tool holders, heat-shrink tool holders, tapping tool holders and boring tool holders. Each type has distinct performance and applicable scenarios, and the detailed selection guidelines are as follows:1. ER Elastic Tool Holder (Most Universal & Cost-Effective)

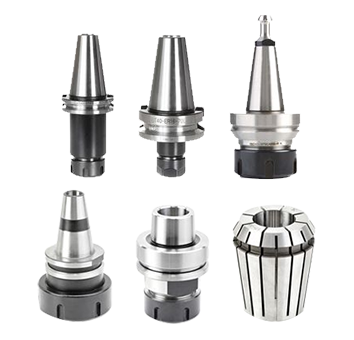

As the most widely used universal tool holder in workshops, it clamps tools through elastic contraction of ER collets, featuring a wide clamping range and strong universality, compatible with most cylindrical shank tools such as drills, end mills and reamers.
Applicable Scenarios: Conventional semi-finishing, general milling, drilling and reaming under working conditions of medium cutting allowance and medium rotational speed.
Advantages and Disadvantages: Simple structure, convenient assembly and disassembly, low cost; average rigidity, unstable precision under ultra-high speed, not suitable for large-allowance roughing and ultra-high precision finishing.
2. High-Power Tool Holder (High Rigidity & Heavy Cutting)
Adopting a double locking structure, it has much higher clamping rigidity and clamping force than ER tool holders, with excellent vibration resistance and deformation resistance.
Applicable Scenarios: Roughing, heavy cutting and large-allowance milling of steel and die steel, serving as the preferred tool holder for rough machining.
Advantages and Disadvantages: High rigidity, anti-vibration and impact resistant; slightly lower clamping precision than precision tool holders, not applicable for high-precision finishing.
3. Hydraulic Tool Holder (High Precision & Low Runout)
It locks tools evenly through hydraulic pressure, featuring ultra-high clamping concentricity, no mechanical gap and minimal runout, which ensures outstanding cutting edge stability.
Applicable Scenarios: Precision finishing, mirror milling, fine boring of small holes and high-precision reaming of aluminum alloy and steel parts.
Advantages and Disadvantages: High precision, zero clamping deviation and tool protection; high cost, poor impact resistance, not suitable for roughing.
4. Heat-Shrink Tool Holder (Ultra-High Precision & Ultra-High Speed)
It clamps tools based on the thermal expansion and contraction principle with no collet and no gap, delivering excellent concentricity and dynamic balance, which is a special tool holder for high-speed machining.
Applicable Scenarios: High-speed finishing of molds, micro-tool machining, ultra-high speed milling and mirror processing.
Advantages and Disadvantages: Top-tier precision, rigidity and dynamic balance performance; requires special heat-shrink equipment, complicated operation and high cost, strictly prohibited for roughing.
5. Side-Lock Tool Holder (Simple & Heavy-Duty)
Tools are fixed by side screw tightening, featuring simple structure, large locking force and excellent anti-slip performance.
Applicable Scenarios: Heavy-duty roughing of large-diameter end mills and roughing cutters under low-speed and high-torque working conditions.
Advantages and Disadvantages: Firm locking and anti-slip; poor concentricity and low precision, completely unsuitable for finishing.
6. Special Tool Holders
Tapping tool holders (with floating compensation function to avoid tap breakage and thread burrs), boring tool holders (with fine adjustment precision for precision boring), and face milling tool holders (matching face milling cutters and cutter discs with high rigidity for plane milling) are dedicated to corresponding processes and can be selected according to actual demands.
