Essentials of Milling Cutter Selection

In CNC machining, cutting tools are the precision "scalpels." Correct selection determines machining quality and efficiency, requiring balance between three key elements: rigidity, material, and geometry.

Understanding Tool Parameters

• Diameter determines the smallest machinable radius

• Length should not exceed 5-8 times the diameter to avoid vibration

• 2-flute for aluminum, 3-flute for general steel, 4+ flute for finishing

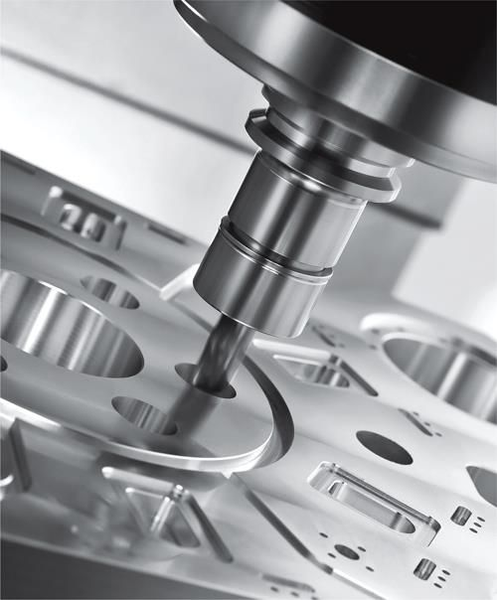

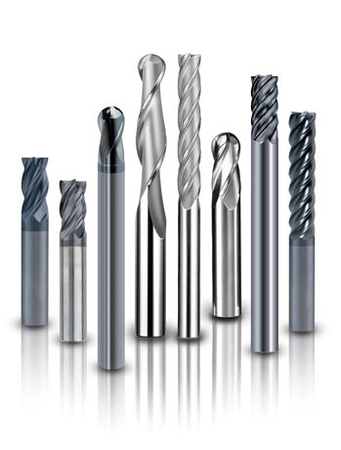

  Square End vs Ball Nose Mills

  These are two of the most fundamental tool types, with distinctly different purposes. Choosing wrong leads directly to failure.

  1. Square End Mill: The Sculptor of Right Angles and Planes

  • Technical Characteristic: Features a flat end, perpendicular to the axis, capable of producing clean 90-degree side walls.

  • Core Responsibilities:

    • Shoulder Milling: Creating vertical steps in a single pass.

    • Face Milling: Generating large, flat surfaces.

    • Square Slot Milling: Machining slots with flat bottoms, like keyways.



  • Technical Insight: During side milling, the radial depth of cut should not be excessive, otherwise the tool's corner (where stress is most concentrated) is prone to rapid wear or even chipping.


  2. Ball Nose Mill: The Carver of Contours and Surfaces

  • Technical Characteristic: The end is hemispherical, with no sharp corner.

  • Core Responsibilities:

    • 3D Contour Machining: Finishing molds, models, embossments, and any complex shapes.

    • Radius Groove Milling: Machining grooves with rounded bottoms.

  • Technical Insight: The effective cutting speed of a ball nose mill is zero at the very center of the ball. Therefore, programming must use a tighter stepover and strategies like "constant scallop height" to ensure surface finish and avoid obvious "stair-step" tool marks.

Systematic Approach
Consider the complete system of tool, holder, and material:

• Use power milling chucks for enhanced rigidity

• Select specialized tools based on material characteristics

Each precise tool selection represents a crucial step in transforming data into precision components - this is the essence of CNC craftsmanship.
